Radiometric
Level and density
Source Container FQG66

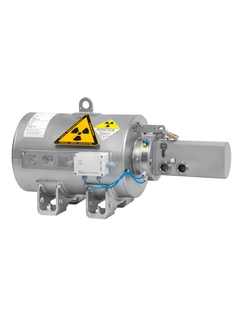

Source Container FQG66 ©Endress+Hauser

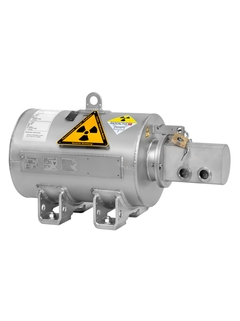

Source Container FQG66 ©Endress+Hauser

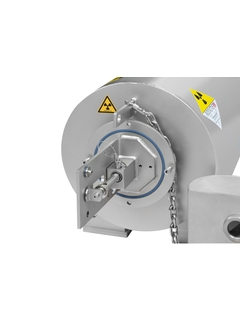

Source Container FQG66 ©Endress+Hauser

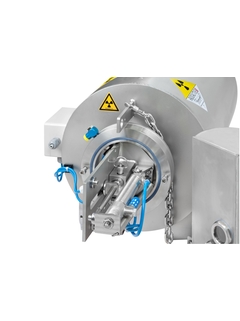

Source Container FQG66 ©Endress+Hauser

Radiometric measuring principle

Radiation source container with sliding source support rod for manual or pneumatic on/off switching

The FQG66 source container is designed to hold the radioactive source with highest activities during radiometric point level detection, continuous level and density measurement. The radiation is emitted almost unattenuated in one direction only, and is damped in all other directions. This guarantees highest safety for the personnel and a reliable measurement.

  • Produtos simples

  • Fácil de escolher, instalar e operar

Excelência técnica

Simplicidade

  • Produtos padrão

  • Confiável, robusto e baixa manutenção

Excelência técnica

Simplicidade

  • Produtos com tecnologia de ponta

  • Altamente funcional e prático

Excelência técnica

Simplicidade

  • Produtos especializados

  • Desenvolvidos para aplicações exigentes

Excelência técnica

Simplicidade

Variável

Versões FLEX Excelência técnica Simplicidade
  • F
  • L
  • E
  • X

Versão Fundamental

Atende suas necessidades básicas de medição

Excelência técnica
Simplicidade
  • F
  • L
  • E
  • X

Versão Lean

Lida com seus principais processos facilmente

Excelência técnica
Simplicidade
  • F
  • L
  • E
  • X

Seleção Extended

Otimiza seus processos com tecnologias inovadoras

Excelência técnica
Simplicidade
  • F
  • L
  • E
  • X

Versão Xpert

Controla suas aplicações mais difíceis

Excelência técnica
Simplicidade

Variável

  • Especificações resumidas

    • Process temperature

      Any

    • Process pressure absolute / max. overpressure limit

      Any

    • Main wetted parts

      Non-contact

please wait Loading alternative products

Seleção rápida

Escolha uma das opções sugeridas
Preço de venda
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

ou

Configuração individual

Continue sua seleção entre todas as opções possíveis
  • Benefícios

    • High safety level thanks to highest safety classification for the source supplied
      (DIN 25426/ISO 2919, typically classification C66646) and simple and easy source replacement

    • Extremely high shielding ensures that no control areas are generally required...

  • Campo de aplicação

    Encloses the radioactive source used for radiometric point level detection, level and density measurement. Operating with very high sensitivity rod scintillation detectors, provide lowest possible radiation loads in the surrounding.

    • Used if the...

Details

  • Measuring principle

    Radiometric

  • Characteristic / Application

    Source container
    Emission angle: 40 / 20 degrees
    435kg

  • Specialities

    Sliding source support rod for manual or pneumatic on/ off switching

  • Ambient temperature

    -55 °C...+100 °C
    (-67 °F...+212 °F)

  • Process temperature

    Any

  • Process pressure absolute / max. overpressure limit

    Any

  • Main wetted parts

    Non-contact

  • Process connection

    Non-contact

  • Measuring principle

    Radiometric Limit

  • Characteristic / Application

    Source container

    Emission angle: 5 degrees

    Approximately 435 kg

  • Specialities

    Control area calculation with Applicator

  • Ambient temperature

    -55 °C ... +100 °C
    (-67 °F ...+212 °F)

  • Process temperature

    Any

  • Process pressure absolute / max. overpressure limit

    Any

  • Main wetted parts

    Non- contact

  • Process connection

    Non- contact

  • Process connection hygienic

    Non- contact

  • Measuring principle

    Radiometric Density

  • Characteristic / Application

    Source container

    Emission angle: 5/ 20 / 40 degrees

    435kg

  • Ambient temperature

    -55 °C...+100 °C

    (-67 °F...+212 °F)

  • Process temperature

    Any

  • Process pressure absolute

    Any

  • Wetted parts

    Non-contact

  • Hygienic

    Non-contact

  • Specialities

    Control area calculation with Applicator

  • Measuring principle

    Radiometric

  • Characteristic / Application

    Source container

    Emission angle: 40 / 20 degrees

    435kg

  • Specialities

    Control area calculation with Applicator

  • Ambient temperature

    -55 °C...+100 °C
    (-67 °F...+212 °F)

  • Process temperature

    Any

  • Process pressure absolute / max. overpressure limit

    Any

  • Main wetted parts

    Non-contact

  • Process connection

    Non-contact

  • Measuring principle

    Radiometric Limit

  • Characteristic / Application

    Source container

    Emission angle: 5 degrees
    435kg

  • Specialities

    Control area calculation with Applicator

  • Ambient temperature

    -55 °C...+100 °C

    (-67 °F...+212 °F)

  • Process temperature

    Any

  • Process pressure absolute / max. overpressure limit

    Any

  • Main wetted parts

    Non- contact

  • Process connection

    Non- contact

  • Process connection hygienic

    Non- contact
