Microwave barrier receiver

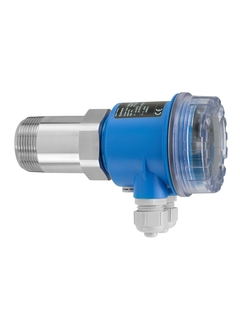

Soliwave FDR56

Soliwave FDR56 ©Endress+Hauser

Receiver for non-contact point level detection in bulk solids

The Soliwave FDR56 microwave barrier uses a contact-free procedure for detection of point levels. It can be installed in containers, conduits, shafts or on free fall shafts. It is possible to take a measurement through non-metallic container materials from the outside. Suitable as point level switch for controlling and counting all types of bulk solids. It interacts with the Soliwave FQR56 emitter.

Seleção rápida

Escolha uma das opções sugeridas
    -- selected coding
    -- selected label
    <%label%>
    -- selected coding
    -- selected label
    <%feature%>
  • Process Connection
      <%label%>
      <%label%>

  • <%message%>

FDR56
Exibir detalhes Ocultar detalhes
Exibir detalhes
Voltar à seleção rápida
  • <%feature%>
    <%coding%>
    <%label%>
pc
  • Acessórios opcionais
Use o configurador individual para continuar.
ou

Configuração individual

Continue sua seleção entre todas as opções possíveis

  • Benefícios

    • Highly reliable measurement due to flush-mounted installation and possible non-contact installation as well as indication of the signal strength on the receiver

    • Mechanical robust solution ensures cost savings over the whole life cycle of the product: No...

  • Campo de aplicação

    Typical bulk solids are: Wood chips, wood dust or flour; plaster, cement, ash; paper or cardboard shred, gravel, sand, dried powders in general, bags and boxes.

    • Process connections: Threads

    • Ambient temperature: -40 to +70°C (-40 to +158°F)

    • Measuring...

Características e especificações

Voltar

Details

  • Measuring principle

    Microwave barrier

  • Characteristic / Application

    Transceiver

    Non-contact point level detection and flow monitoring

    Detecting, counting and positioning of objects

    Monitoring of material transfer points

    Detection and analysis of deposits and contamination


    Installation:

    Non-contact installation (transmission window) or front-flush installation (contact)

  • Specialities

    Measuement range: max. 100 m

  • Supply / Communication

    85 ... 253 VAC

    20 ... 60 VDC/ 20 ... 30 VAC

  • Ambient temperature

    -40 °C...+70 °C

    (-40°F...+158°F)

  • Process temperature

    Non-contact installation: any

    Within installation:

    -40 °C...+70 °C (-40 °F...+158 °F)

    With HT-Adapter:

    up to +450 °C (+842 °F)

  • Process pressure absolute / max. overpressure limit

    Non-contact installation: any

    Within installation:

    0.5 bar ... 6.8 bar (7.2 psi ... 99 psi) abs.

    With HD-Adapter:

    up to +21 bar (+305 psi) abs.

  • Min. density of medium

    Solid weight: > 10 g/l

  • Main wetted parts

    Non-contact installation:
    no wetted parts

    Within installation:

    316Ti or Aluminium;

    PTFE or Ceramic

  • Process connection

    1-1/2" R, 1-1/2" G, 1-1/2" NPT

  • Process connection hygienic

    Non-contact installation

  • Communication

    Relays SPDT

    Solid-State-Relaiy

    4 ... 20 mA

  • Certificates / Approvals

    ATEX, CSA C/US, IEC Ex

  • Design approvals

    EN10204-3.1

  • Options

    Sight glass

    High temperature adapter

    High pressure adapter

    Installation bracket

    FAR50, FAR51, FAR52, FAR53, FAR54, FAR55

  • Components

    Transmitter: FQR56

  • Application limits

    Solid weight: < 10 g/l

Documentos / Manuais / Software

  • Accessory FAR52 Technical Information

    Screw-in/weld-in Adapter

    Technical Information (TI)
  • Accessory FAR50 Technical Information

    Weld-in nozzle with PTFE plug and counter flange
    with venting element

    Technical Information (TI)
  • Accessory FAR54 Technical Information

    Plug made of PTFE or aluminium oxide ceramics

    Technical Information (TI)
  • Microwave barrier Technical Information

    Soliwave FQR56 - Sender and Soliwave FDR56 - Receiver

    Technical Information (TI)
  • Accessory FAR51 Technical Information

    Insertion adapter with venting element

    Technical Information (TI)
  • Accessory FAR55 Technical Information

    Wave guide

    Technical Information (TI)
  • Accessory FAR53 Technical Information

    Spacer tube

    Technical Information (TI)
  • Soliwave FQR56/FDR56 Operating Instructions

    Microwave barrier

    Operating Instruction (BA)
  • Microwave barrier

    Soliwave FQR56, FDR56

    Short Instruction (KA)
    06/16
    Alemão , Inglês , Espanhol , fr , Italiano , Holandês
  • Safety Instructions Soliwave FQR56, FDR56

    Ex ta/tb IIIC T102 °C Da/Db IP66
    Ex tb IIIC T102 °C Db IP66
    IECEx BVS 11.0035

    Ex Safety Instructions (XA)
  • CSA Control Drawing

    Soliwave FDR56, FQR56

    Ex Safety Instructions (XA)
  • Soliwave FQR56, FDR56 Safety Instructions

    II 1/2D Ex ta/tb IIIC T102°C Da/Db IP66
    II 2D Ex tb IIIC T102°C Db IP66
    BVS 11 ATEX E 064

    Ex Safety Instructions (XA)
  • Pressemitteilung: Soliwave FQR56/FDR56

    Pressemitteilung: Kompakte Mikrowellenschranke mit erweitertem
    Anwendungsbereich

    Publications (PU)
    12/10
    Alemão
  • Fachartikel: Kontrolliert Durchgeschüttet

    Fachartikel: Die Überwachung von kontinuierlichem Materialfluss wird
    immer wichtiger. Denn auch die schüttgutverarbeitende Industrie setzt
    verstärkt auf die kontinuierliche Verarbeitung von Rohmaterial. Das
    reduziert Lagermengen und somit die Kosten.

    Publications (PU)
    11/11
    Alemão
  • Fachartikel: Staugefahrt erkannt, Staugefahrt gebannt

    Fachartikel: Berührungslose Grenzstanderfassung von Schüttgütern

    Publications (PU)
    10/11
    Alemão
  • Fachartikel: Überwachung des Materialstroms

    Fachartikel: Der Trend in der schüttgutverarbeitenden Industrie geht zu
    einer weitgehend kontinuierlichen Verarbeitung des Rohmaterials, um die
    Lagermengen und Kosten bei der Investition zu reduzieren. Dies verlang
    aber auch die Bereitstellung der Materialströme. Damit kommt der
    Überwachung des kontinuierlichen Materialflusses mehr Bedeutung zu.

    Publications (PU)
    06/11
    Alemão
  • Mesure de niveau

    Aperçu des produits pour des applications dans des liquides et des
    solides en vrac

    Fields of Activities (FA)
    03/19
    fr
  • Level measurement

    Product overview for applications in liquids and bulk solids

    Fields of Activities (FA)
    03/17
    Inglês
  • Level measurement

    Product overview for applications in liquids and bulk solids

    Fields of Activities (FA)
    03/17
    Inglês
  • Füllstandmesstechnik

    Produktübersicht für Anwendungen in Flüssigkeiten und Schüttgütern

    Fields of Activities (FA)
    03/17
    Alemão
  • Catálogo Medición y Detección de nivel

    Gama de productos para aplicaciones con líquidos y sólidos

    Fields of Activities (FA)
    03/17
    Espanhol
  • Parallel operation of Soliwave and Solimotion

    Safe monitoring of transportation processes

    Case Studies (CS)
    02/15
    Inglês
  • Parallelbetrieb von Soliwave und Solimotion

    Sichere Überwachung von Transportprozessen

    Case Studies (CS)
    02/15
    Alemão
  • Микроволновый барьер Soliwave FQR56/FDR56

    Бесконтактный контроль предельного уровня сыпучих сред

    Innovations (IN)
    07/14
    Russo
  • Solimotion, Soliwave

    Código do Produto: FDR56-, FQR56-, FTR20-
    Número declaração: HE_00414_01.17
    especificação do fabricante: RoHS

    Manufacturer Declaration
    Inglês
  • Soliwave

    Código do Produto: FDR56-, FQR56-
    Número declaração: EC_00226_04.16

    EU Declaration
    Alemão , Inglês , fr
  • Soliwave, Soliwave M

    Código do Produto: FDR56-, FQR56-

    EU Declaration
    Alemão , Inglês , fr
  • Solimotion, Soliwave

    Código do Produto: FDR56-, FQR56-, FTR20-
    Região: Russia
    Número da Certificação: RU D-DE.HA10.B.01503

    Miscellaneous
    Russo
  • Solimotion, Soliwave

    Código do Produto: FDR56-, FQR56-, FTR20-
    Região: Russia (TR CU)
    Agente Certificador: EAC
    Número da Certificação: TC BY_112 11.01. TP004 003 137

    Miscellaneous
    Russo
  • Solimotion, Soliwave

    Código do Produto: FDR56-, FQR56-, FTR20-
    Região: Russia
    Número da Certificação: RU D-DE.HA10.B.01506

    Miscellaneous
    Russo
  • Soliwave

    Código do Produto: FDR56-, FQR56-, FTR20-
    Agente Certificador: CSA
    Categoria: II/1/E,F,G/
    Proteção: DIP

    Explosion Protection
    Inglês
  • Solimotion, Soliwave

    Código do Produto: FDR56-, FQR56-, FTR20-
    Região: Russia (TR CU)
    Agente Certificador: EAC
    Proteção: Ex tb, Ex ta/tb

    Explosion Protection
    Russo
  • Soliwave

    Código do Produto: FDR56-, FQR56-, FTR20-
    Região: International (IECEx), Europe (ATEX)
    Agente Certificador: BVS
    Proteção: Ex tb IIIC Txxx°C Db, Ex ta/tb IIIC Txxx°C Da/Db

    Explosion Protection
    Inglês
  • Soliwave

    Código do Produto: FDR56-, FQR56-, FTR20-
    Região: Europe (ATEX)
    Agente Certificador: BVS
    Categoria: II 2 D, II 1/2 D
    Proteção: Ex tb IIIC Txxx°C Db, Ex ta/tb IIIC Txxx°C Da/Db

    Explosion Protection
    Alemão
