Medidor de turbidez online
Turbimax CUE21

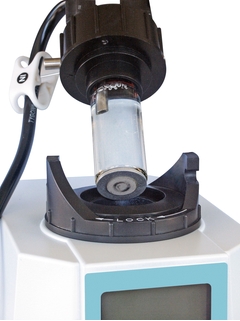

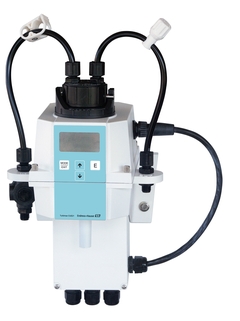

Medidor de turbidez online Turbimax CUE21 ©Endress+Hauser
Medidor de turbidez online Turbimax CUE21 ©Endress+Hauser
  • Medidor de turbidez online Turbimax CUE21
  • Medidor de turbidez online Turbimax CUE21

Sistema compacto com ajuste de condição de amostra para aplicações em água potável e processada

Turbimax CUE21 é um medidor de turbidez confiável para medição contínua em conformidade com EN ISO 7027. O funcionamento é simples: conecte a água, ajuste as configurações e o sistema funcionará de maneira autônoma. Turbimax CUE21 oferece calibração guiada de acordo com os padrões pré-definidos, ajudando na rapidez da manutenção. A sua função de limpeza ultrassônica automática prolonga os intervalos de serviço oferecendo economia significativa nas despesas de operação.

This product is not available in this market.

Seleção rápida

Escolha uma das opções sugeridas
    -- selected coding
    -- selected label
    <%label%>
    -- selected coding
    -- selected label
    <%feature%>
  • Process Connection
      <%label%>
      <%label%>

  • <%message%>

CUE21
Exibir detalhes Ocultar detalhes
Exibir detalhes
Voltar à seleção rápida
  • <%feature%>
    <%coding%>
    <%label%>
pc
  • Acessórios opcionais
Use o configurador individual para continuar.
ou

Configuração individual

Continue sua seleção entre todas as opções possíveis

  • Benefícios

    • Intervalos de serviço longos para economizar custos de operação

    • Calibração rápida e fácil, verificação em segundos

    • Volume baixo do tempo de resposta da velocidade da cuveta de vazão

    • Função de limpeza ultrassônica automática reduz os esforços de manutenção

    • Ajuste da condição de amostra (vazão e pressão) inclusa

  • Campo de aplicação

    Turbimax CUE21 é um medidor de turbidez online para:

    • Água potável e de processo:
      - Monitoramento de processo
      - Monitoramento do filtro e retrolavagem do filtro em trabalhos com água
      - Monitoramento da qualidade da água em trabalhos com água e redes de...

Características e especificações

Voltar

Details

  • Measuring principle

    Single beam scattered light

  • Application

    Online continuous monitoring of clean water :
    - Drinking water
    - Treated process water

  • Installation

    Compact device for bypass-installations.

  • Characteristic

    " Versions with infrared light source
    " Fast and easy calibration
    " Complete primary calibration in less than 5 minutes
    " Verification in seconds
    " Reduced calibration costs and quick response times thanks to low volume sample chamber
    " Automatic continuous ultrasonic cleaning (Autoclean)increases cleaning intervals dramatically
    " Simple modular design
    " Easy to use and service
    " Affordable thanks to modular microprocessor based technology
    " Digital high-speed connections through RS-485 with Modbus
    Optional Features:
    " Flow chamber for bubble suppression
    " Reusable calibration kit

  • Measurement range

    0 - 1000 NTU

  • Measuring principle

    Turbidity measurement using standardised 90° scattered light method acc. to ISO 7027/EN27027(Infrared Light)

  • Design

    The transmitted infrared light beam is scattered by the solid matter particles in the medium. The scattered light beams are detected by scattered light receivers which are arranged at an angle of 90° to the light source.

  • Material

    Housing: ABS
    Flow-through head: Nylon
    Sample cuvette: Borosilicate glass
    Sample cuvette seal: Silicone
    Flow-through fittings: Polypropylene
    Flow-through lock down pins: Stainless steel (AISI 304 or AISI 303)
    Inlet tube: Stainless steel (AISI 316)

  • Dimension

    347,16 x 207,65 x 196,85 mm
    (13.66 x 8.17 x7.75 inches)

  • Process temperature

    1°C - 50°C
    ( 34 - 122°F

  • Process pressure

    max. 13.78 bar / 200 psicontrolled by integral pressure regulator

  • Ingres protection

    IP66

  • Output

    4-20mA, galvanic isolated
    Bi-directional RS-485, Modbus optional.

Documentos / Manuais / Software

  • Technical Information Turbimax CUE21 / CUE22

    Turbidimeter for on-line measurement

    Technical Information (TI)
  • Turbimax CUE21 / CUE22 Operating Instructions

    Turbidimeter for online measurement

    Operating Instruction (BA)
  • Przetwornik Liquiline M CM442- FE

    Wieloparametrowy przetwornik Liquiline M CM442 obsługujący dowolne
    czujniki w technologii Memosens.

    Publications (PU)
    04/12
    Polonês
  • Innovation brochure Turbimax CUE21 - CUE26

    Compact line for turbidity measurement for process, laboratory and field
    application

    Innovations (IN)
    05/05
    Inglês
  • Innovationsbroschüre Turbimax CUE21 - CUE26

    Kompaktlinie zur Trübungsmessung für Prozess-, Labor- und Feldeinsatz

    Innovations (IN)
    05/05
    Alemão
  • Turbimax CUE21

    Trübungsmessung für klare Medien, ausgeführt als Kompaktgerät zur
    Wandmontage
    mit integrierter Ultraschallreinigung

    Tender Text
    12/16
    Alemão
  • 51518580 (South Africa)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    Inglês
  • 51518580 (Japan)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    Japonês
  • 51518580 (Slovakia)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
  • 51518580 (South Korea)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
  • 51518580 (Hungary)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    Húngaro
  • 51518580 (United Kingdom)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    Inglês
  • 51518580 (Denmark)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    Dinamarquês
  • 51518580 (Slovenia)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
  • 51518580 (Finland)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    Finlandês
  • 51518580 (Switzerland (Italian))

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    Italiano
  • 51518580 (Malta)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    Inglês
  • 51518580 (India)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    Inglês
  • 51518580 (Lithuania)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
  • 51518580 (United Arab Emirates)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
  • 51518580 (Netherlands)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    Holandês
  • 51518580 (Czech Republic)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    Tcheco
  • 51518580 (Norway)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    Norueguês
  • 51518580 (Estonia)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
  • 51518580 (Germany)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    Alemão
  • 51518580 (Austria)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    Alemão
  • 51518580 (European Union)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    Inglês
  • 51518580 (Switzerland (French))

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    fr
  • 51518580 (Turkey)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    Turco
  • 51518580 (Mexico)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    Espanhol
  • 51518580 (Italy)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    Italiano
  • 51518580 (Bulgaria)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    Búlgaro
  • 51518580 (Ukraine)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
  • 51518580 (Portugal)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    Português
  • 51518580 (Canada (French))

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    fr
  • 51518580 (Russia)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    Russo
  • 51518580 (Ireland)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    Inglês
  • 51518580 (Spain)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    Espanhol
  • 51518580 (China)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    Chinês
  • 51518580 (Switzerland)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    Alemão
  • 51518580 (Belgium)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    fr
  • 51518580 (Greece)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    Grego
  • 51518580 (Canada)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    Inglês
  • 51518580 (Australia)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    Inglês
  • 51518580 (USA)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    Inglês
  • 51518580 (Romania)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    Romeno
  • 51518580 (United Arab Emirates)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    Inglês
  • 51518580 (Saudi Arabien)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
  • 51518580 (Sweden)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    Sueco
  • 51518580 (France)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    fr
  • 51518580 (Belgium (Dutch))

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    Holandês
  • 51518580 (Croatia)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
  • 51518580 (Latvia)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
  • 51518580 (Poland)

    Standard solution for turbidity

    Reagents/standard solutions/cleaner for analyzer
    Polonês
  • Kompaktsystem

    Código do Produto: CUE21-, CUE22-
    Número declaração: EC_00718_01.18

    EU Declaration
    Alemão , Inglês , fr

Acessórios / peças sobressalentes

Nr
Order code
Specification

  • Successor

    • Liquiline CM448 é um transmissor digital para pH, ORP, condutividade, oxigênio, turbidez e mais

      Liquiline CM442

      O transmissor Liquiline CM442 é a forma ideal de entrar no universo da medição multiparâmetro. Sua simplicidade inteligente o torna fácil de usar e economiza tempo e dinheiro todos os dias.

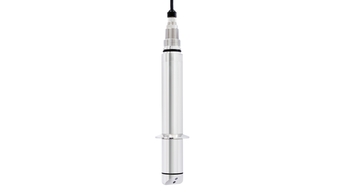

    • CUS52D is a smart inline/immersion turbidity sensor for all water production measuring points.

      Turbimax CUS52D

      Turbimax CUS52D is a smart inline/immersion turbidity sensor for all water production measuring points. Achieve lab quality measurement without product loss!

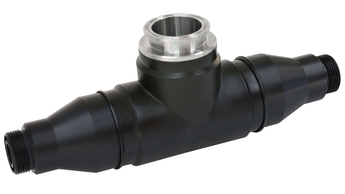

    • Flowfit CUA252 is a turbidity flow cell with extremely low backscattering.

      Flowfit CUA252

      Flowfit CUA252 is a flow assembly with extremely low backscattering enabling reliable measurements in the lowest turbidity range.

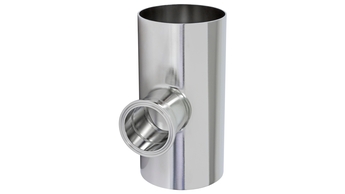

    • Flowfit CUA262 is an inline turbidity flow cell for welding in your skid, pipeline or plant.
