Digital free bromine sensor
Memosens CCS55D

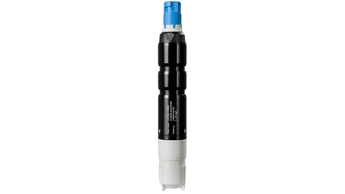

Memosens CCS55D: Digital free bromine sensor ©Endress+Hauser

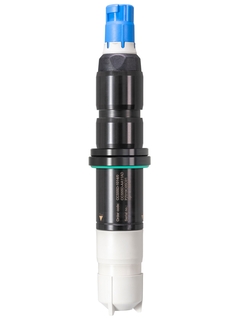

Memosens CCS55D free bromine sensor with adapter for installation in CCA151 flow assembly ©Endress+Hauser

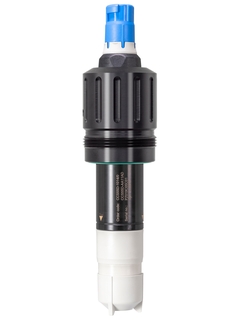

Memosens CCS55D free bromine sensor with adapter for installation in CCA250 flow assembly ©Endress+Hauser

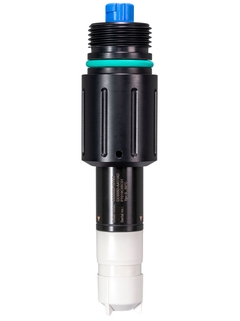

Memosens CCS55D free bromine sensor with adapter for installation in CYA112 immersion assembly ©Endress+Hauser

Memosens converts the measured value to a digital signal and transfers it to the transmitter without a contacting connection. This video shows how Memosens optimizes process control and maintenance.

Memosens sensor for seawater and process water

Memosens CCS55D is a low-maintenance sensor for free bromine. It provides high-precision, stable measurement in seawater for desalination plants, process or cooling water, swimming pools and fish farming industry. The free bromine sensor ensures safe disinfection with bromine even at low water volumes. It features fast response times guaranteeing efficient process control. Thanks to Memosens digital technology, CCS55D combines maximum process and data integrity with simple operation.

Seleção rápida

Escolha uma das opções sugeridas
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>


Configuração individual

Continue sua seleção entre todas as opções possíveis
  • Benefícios

    • The right sensor version for every application: From trace measurement up to free bromine concentrations of 200 mg/l.

    • Fast response time (t90 < 20 s) provides an accurate process view and enables prompt reaction to process changes as well as efficient...

  • Campo de aplicação

    The Memosens CCS55D free bromine sensor is suitable for a wide range of water qualities:

    • Seawater applications such as desalination plants - to ensure reliable disinfection and avoid overdosing

    • Food industry - to provide accurate control of water in fish...

Características e especificações



  • Measuring principle

    Free bromine

  • Application

    Seawater - to ensure reliable disinfection

    Process water - wide range of application due to large measuring range

    Pool water - efficient dosing thanks to precise measurement

  • Characteristic

    Amperometric measurement of dissolved free bromine

  • Measurement range

    Trace: 0 ... 5 mg/l HOBr

    Standard: 0 ... 20 mg/l HOBr

    High: 0 ... 200 mg/l HOBr

  • Measuring principle

    Closed, membrane covered measuring cell

    Reduction of free bromine at the working electrode

  • Design

    Closed amperometric 2-electrode measuring cell with PET membrane

  • Material

    Sensor shaft: PVC

    Membrane: PET

    Membrane cap: PVDF

  • Dimension

    Diameter: 25 mm (0.98 in)

    Length: 161 mm (6.34 in)

  • Process temperature

    +0...55 °C (32 ... 130°F), non-freezing

  • Process pressure

    Max. 1 bar (max. 14.5 psi)

  • Temperature sensor

    10k NTC integrated (Memosens)

  • Connection

    Inductive, digital connection head with Memosens technology
