Name: Prosonic Flow Inline 93C
Brand: Endress+Hauser
Availability: InStock

Esse produto não está mais disponível.

Verifique a nova geração na seção do predecessor / sucessor ou entre em contato com a Endress+Hauser local.

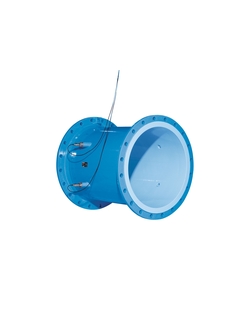

Proline Prosonic Flow 93C for water and wastewater applications

Product headline

std_productprofile_product_usp_60153_1581515154.
std_productprofile_product_field_of_application_60154_1581515575.
Sensor features

std_productprofile_product_benefits_60155_1581515575. std_productprofile_product_benefits_60156_1581515575. std_productprofile_product_benefits_60157_1581515575.
std_successorproducts_product_differentiating_tech_features_60158_1581515675. std_successorproducts_product_differentiating_tech_features_60159_1581515675. std_successorproducts_product_differentiating_tech_features_60160_1581515675.
Transmitter features

std_productprofile_product_benefits_60161_1581516129. std_productprofile_product_benefits_60162_1581516129. std_productprofile_product_benefits_60163_1581516129.
std_successorproducts_product_differentiating_tech_features_60164_1581516129. std_successorproducts_product_differentiating_tech_features_60165_1581516129. std_successorproducts_product_differentiating_tech_features_60166_1581516129.
Nominal diameter range

DN 300 to 1200(12" to 48")
Wetted materials

Sensor housing: 1.4404/DN 17440 (316L/AISI)
Weld-in parts: 1.4404/DN 17440 (316L/AISI)
Measuring pipe: ST 37.2 (carbon steel)
Measured variables

Volume flow channel 1 or 2, sound velocity, flow velocity, average volume flow, average sound velocity, average flow velocity, totalizer
Max. measurement error

+/-0.5 %
Measuring range

0 to 40000 m3/h 0 to 180000GPM
Max. process pressure

PN 16, Cl. 150
Medium temperature range

-20 to +60°C (-4 to 140°F)
Ambient temperature range

Transmitter:
–20 to +60 °C (–4 to +140 °F)
Sensor:
–20 to +80 °C (–4 to +176 °F)
Transmitter housing material

Wall-mounted housing: powder-coated die-cast aluminum
Degree of protection

Transmitter
IP 67 (NEMA 4X)
Sensor
IP 68 (NEMA 6P)
Display/Operation

4 lines backlit display with three optical keys
Outputs

1x 4-20 mA HART
1x Pulse/frequency/switch output (passive)
Inputs

N/A
Digital communication

HART, PROFIBUS PA, PROFIBUS DP, FOUNDATION Fieldbus
Power supply

AC 85 to 260 V
AC 20 to 55 V
DC 16 to 62V
Hazardous area approvals

FM
CSA
Product safety

CE, C-Tick
