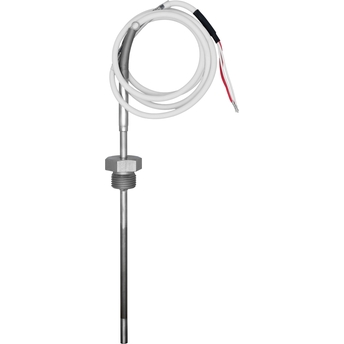

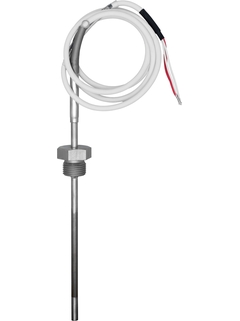

Pt100 RTD thermometer TST310 temperature cable probe

TST310
RTD thermometer, temperature cable probe

Cost efficient Pt100 sensor for use in many process and laboratory applications

TST310
Please Wait (spinning wheel)
Carregando preços
Preço temporariamente indisponíveis
Price on request
ativando preços
preço: fornecer informações
from CHF ??.-
Filtrar medição / Tarefa de aplicação
Tarefa de aplicação / medição

Configurar para baixar os desenhos CAD deste produto

  • Measuring principle

    Resistance Temperature Detector

  • Characteristic / Application

    metric style
    cable probe
    suitable for hazardous areas
    process connection as compression fitting

  • Thermowell / protection tube

    without (not intended to use with thermowell)

  • Insert / probe

    mineral insulated (MI), flexible

  • Outer diameter protection tube / Insert

    3,0 mm (0,12'')
    6,0 mm (0,24'')

  • Max. immersion length on request

    up to 10.000,00 mm (393,70'')

  • Material protection tube/ thermowell

    1.4404 (316L)
    1.4571 (316Ti)

  • Process connection

    male thread:
    G1/4"
    G1/2"
    M10x1
    M8x1
    compression fitting:
    G1/8"
    G1/4"
    G1/2"
    NPT1/4"
    NPT1/2"
    M10x1
    M8x1

  • Tip shape

    straight

  • Operating temperature range

    PT 100:
    -50 °C ...400 °C
    (-58 °F ...752 °F)

  • Max. process pressure (static)

    at 20°C: up to 75 bar (depending on the process connection)

  • Accuracy

    class A acc. to IEC 60751
    class B acc. to IEC 60751
    class AA acc. to IEC 60751

  • Response time

    t50 = 3 s
    t90 = 6 s

  • Integration head transmitter

    no

  • Ex - approvals

    ATEX II1/2D Ex ia IIIC,II1G Ex ia IIC T6
    ATEX II1D Ex ia IIIC, II1G Ex ia IIC T6
    ATEX II1G Ex ia IIC T6
    ATEX II 3 G Ex nA IIC T6, II3D
    NEPSI Ex ia IIC T6, Ex iaD 20 T85-T450
    EAC Ex ia
    UK II1G Ex ia IIC T6 Ga
    UK II1/2D Ex ia IIIC Da/Db, II1G Ex ia IIC T6 Ga
    UK II1D Ex ia IIIC Da, II1G Ex ia IIC T6 Ga
    UK II 3 G Ex nA IIC T6 Gc, II3D Ex tc IIIC Dc
    IECEx Ex ia IIC T6 Ga
    NEPSI Ex nA IIC T6
