Transmissor de 1-/2- canais

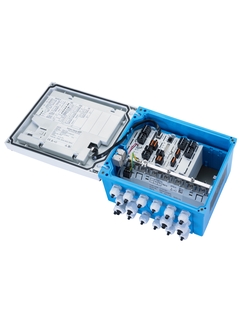

Liquiline CM442
Equipamento de campo multiparâmetro expansível para todos os setores industriais
Liquiline CM442 é um transmissor digital multiparâmetro para monitoramento e controle de processo em qualquer aplicação. O controlador de 1-/2- canais economiza tempo e dinheiro oferecendo total integração do sistema, operação simples e menos necessidade de estoque de peças de reposição. O Liquiline CM442 oferece a você todos os benefícios da melhor plataforma de transmissor em sua categoria a partir de simplicidade inteligente e máxima segurança de processo.
- F
- L
- E
- X
-
Produtos com tecnologia de ponta
- Altamente funcional e prático
Excelência técnica
Simplicidade
-
Produtos especializados
- Desenvolvidos para aplicações exigentes
Excelência técnica
Simplicidade
Variável
Versões FLEX | Excelência técnica | Simplicidade |
---|---|---|
Versão Fundamental Atende suas necessidades básicas de medição |
Excelência técnica
|
Simplicidade
|
Versão Lean Lida com seus principais processos facilmente |
Excelência técnica
|
Simplicidade
|
Seleção Extended Otimiza seus processos com tecnologias inovadoras |
Excelência técnica
|
Simplicidade
|
Versão Xpert Controla suas aplicações mais difíceis |
Excelência técnica
|
Simplicidade
Variável |
-
Especificações resumidas
-
Input
1 to 2x Memosens digital input
2x 0/4 to 20mA input optional
2x Digital input optional -
Output
2 to 8x 0/4 to 20 mA current outputs
Alarmrelay, 2x relay, ProfibusDP, Modbus RS485, Modbus TCP, Ethernet -
Ingres protection
IP66 / IP67
-
Seleção rápida
Configuração individual
-
Benefícios
Simplicidade inteligente:
um controlador para todos os parâmetros e aplicações, interface do usuário intuitiva, reconhecimento automático do sensor, conexão dinâmica plug-&-play com sensores Memosens pré-calibrados.Alta flexibilidade:
Módulos...
-
Campo de aplicação
O transmissor multiparâmetro Liquiline CM442 é adequado para todas as aplicações em áreas não classificadas, por exemplo, nestes setores industriais e em suas utilidades:
Alimentos e bebidas
Life Sciences
Potência e energia
Água e esgoto
Produtos químicos
O...
